Triggers

Triggers: Giving Forms Life

The DMflow.chat trigger system is the bridge connecting form data and automated actions. It supports extensive integration, including LINE, OpenAI (Chat, Image, Audio), SendGrid, Telegram, OpenRouter, and Google ecosystem (Calendar, Drive).

The Essence of Triggers: JSON Structure

In DMflow, every logical node is constructed by JSON (JavaScript Object Notation) at the bottom layer. You can view it as a standard container for passing and storing data.

Node Storage Structure Example: Except for the start node fixed named start, other nodes use UUID as unique identifiers.

{
  "start": {
    "username": "dmflow.chat"
  },
  "97d860d4-5a7f-49e0-804a-7ce4891076bf": {
    "datas": [
      {"id": "001", "name": "Test"},
      {"id": "002", "name": "Test2"}
    ]
  }
}

Two Major Flow Types

Triggers are divided into two stages:

Trigger Flow:
- Purpose: Responsible for frontend data validation and interaction.
- Function: Check if input text is correct, and can call default LLM (Gemini 2.0 flash) to automatically supplement or correct text content.
Background Flow:
- Purpose: Responsible for backend data processing and Side Effects.
- Timing: The system executes this flow only when the Trigger Flow successfully reaches END and data has been saved, updated, or deleted.

Trigger Flow Nodes Explained

Node Name	Function Description

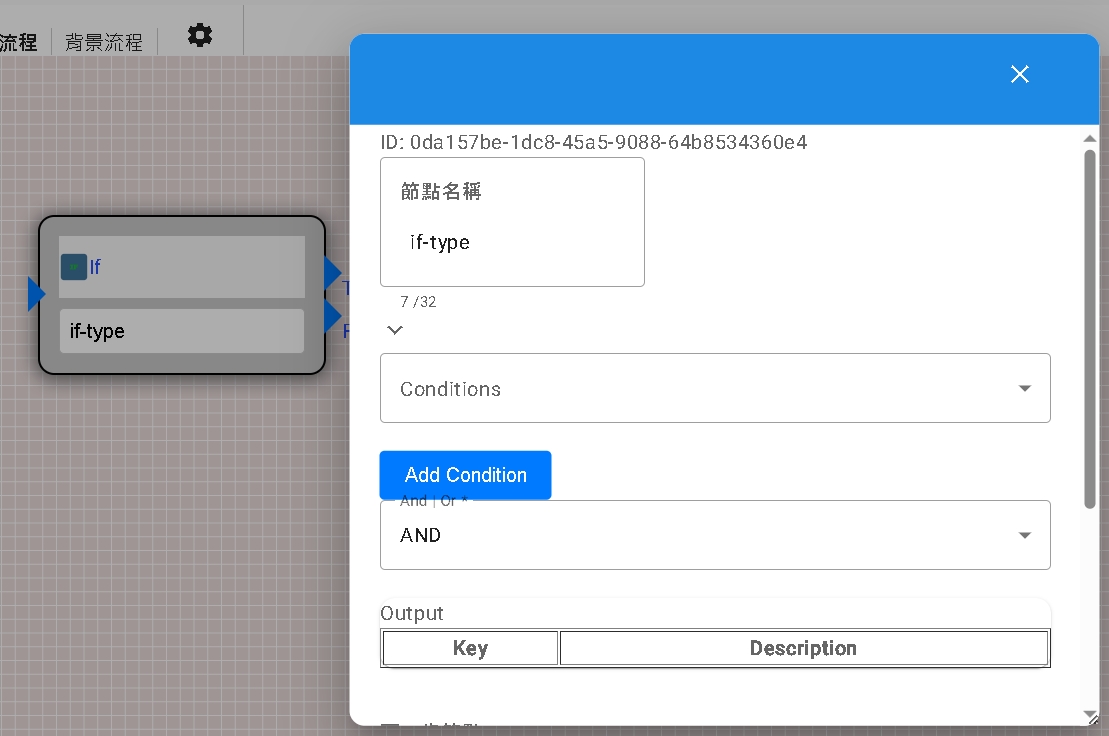

IF	Condition Judgment. Contains Conditions, directing to True or False paths based on results.

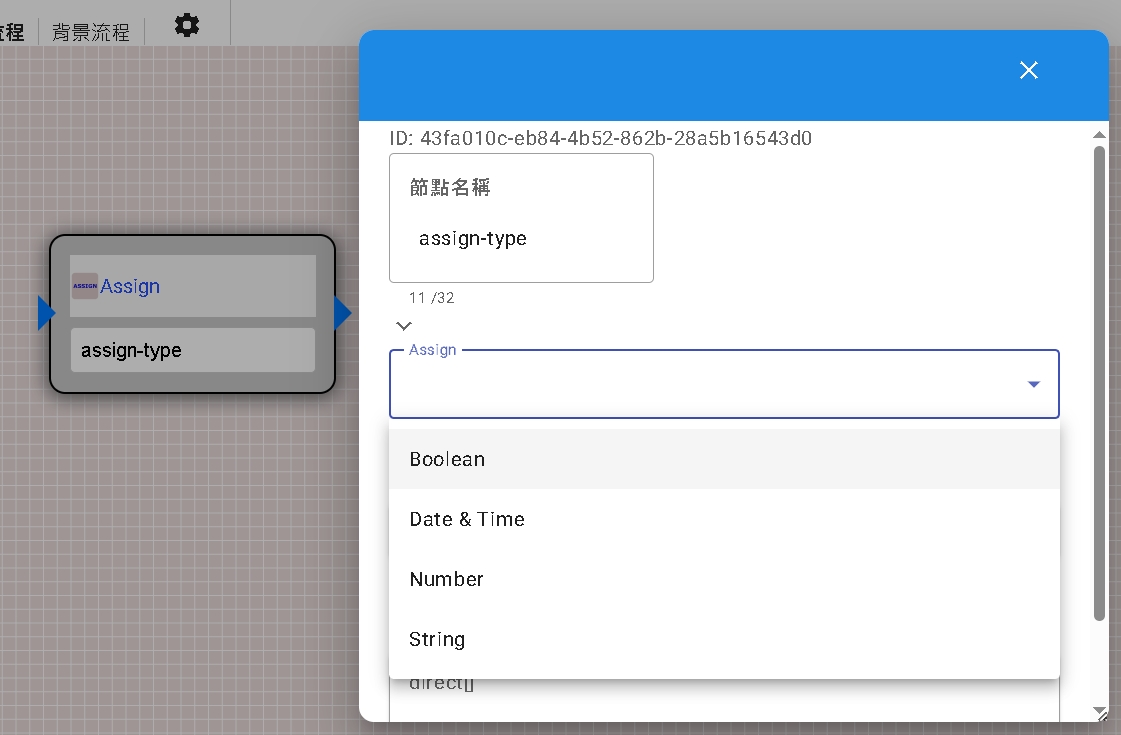

ASSIGN	Assignment. Store content obtained or calculated in conversation into specific field variables. Used to overwrite old values or add new values.
RESPONSE	Interactive Response. Generate conversation output based on the filled Prompt. Can set `Response_only`: - `false`: Grab data from Fields to backfill. - `true`: Directly get LLM’s response text (such as translation results).
ERROR	Error Termination. Reply with error message and forcibly end conversation when validation fails or format is incorrect.
STOREQUERY	Store Query. Similar to `ME` node, but waits for user’s next response. Used to capture JSON information (text, file, etc.) from conversation and cache it.
ROW_EXIST	Data Existence Check. Filter and check if specific data exists (e.g., check if Email is already registered). Can set whether to ignore guest permissions (Admin mode).
ME	Visitor Identity. Get information of the visitor currently calling this trigger, and pass directly without waiting.

RESPONSE Node Data Structure Example: If Fields: ["Name", "Email"], data will be stored as:

node['UUID'].username
node['UUID'].email

If Response_only: true, data will be stored as:

node['UUID'].response

Background Flow Nodes Explained

Background flow takes over handling saved data and performing more complex logical operations.

Node Name	Function Description
HTTP	Call external API.
IF / ASSIGN	Same as Trigger Flow.
LOOPS	Loop processing. Iterate over array data.
SEARCH	Search form data.
INSERT	Insert new data row (Row).
UPDATE	Update data of specified ID.
DELETE	Delete data of specified ID.
NATIVE_UTILS	Platform native tools. Currently provides function to get file PresignedUrl, convenient for third parties to read private files.

Parameters and Functions

Parameter Reference: Use {{ }} to wrap variables. Supports automatic search for fillable parameters.
Common Function Library (Utils):
- hash(text): Convert to hash value.
- uuid(): Generate UUID v7.
- randomValue(length): Generate random number.
- now(timezone): Get current time string.
- toSeconds(dateString): Convert time to seconds.
- generateSignature(...): Generate signature.
- encrypt/decrypt(...): Encryption/Decryption (relies on tenant key).
- passwdEncode/Verify(...): BCrypt password processing.
- atob(text): Base64 decode.

Testing and Debugging

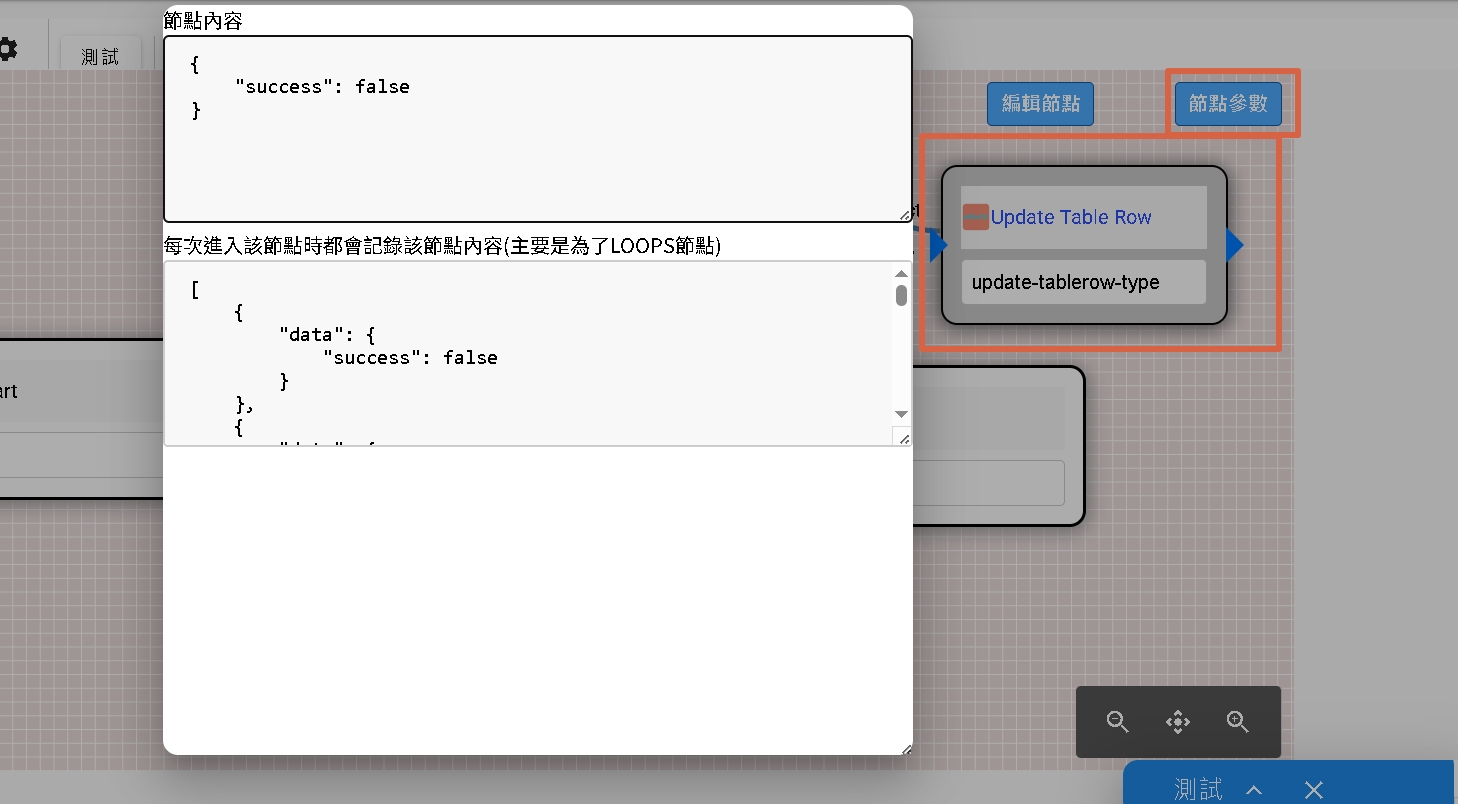

DMflow provides a real-time test interface based on Server-Sent Events (SSE). You can visualize the execution path of every node and click on nodes to view the current parameter status, making debugging intuitive and simple.

Security Declaration

Third-party calls in Background Flow use Tenant-level keys. All keys are stored in the database with high-strength encryption. Trigger call records are only viewable by tenant managers, and test calls will not be recorded.
